Product Detail

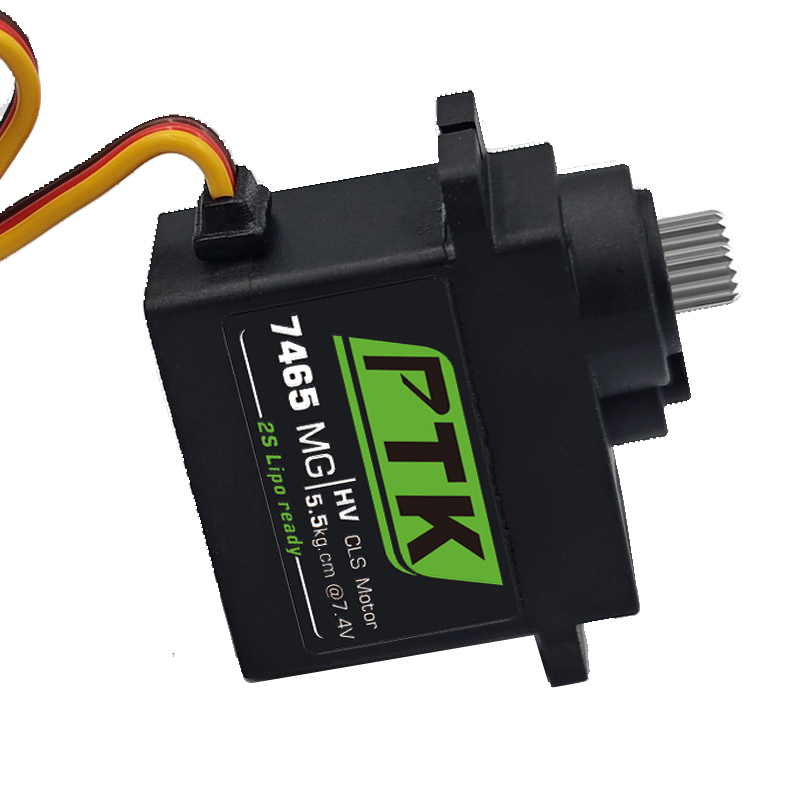

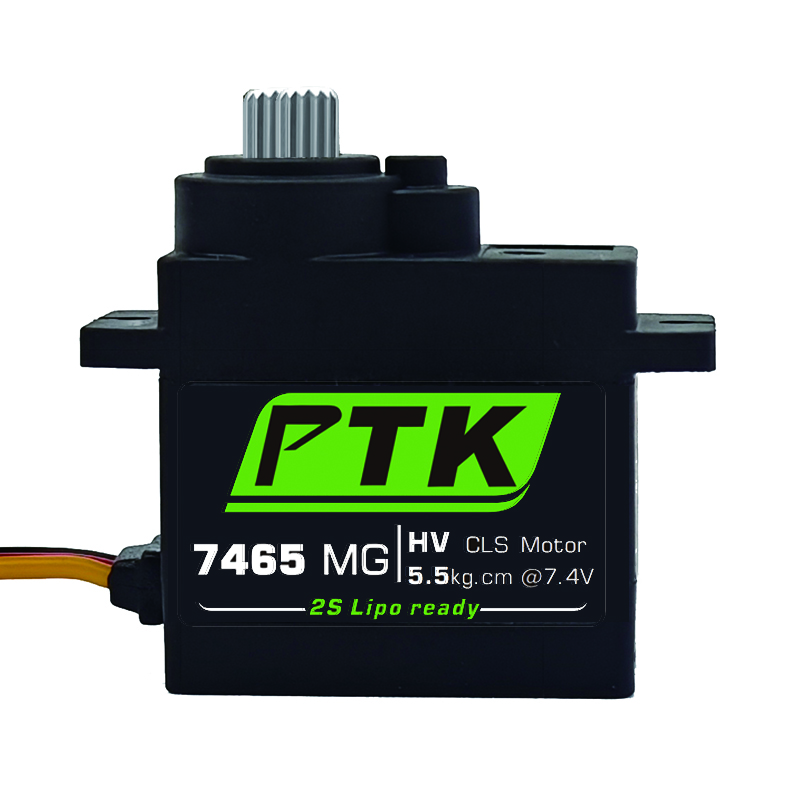

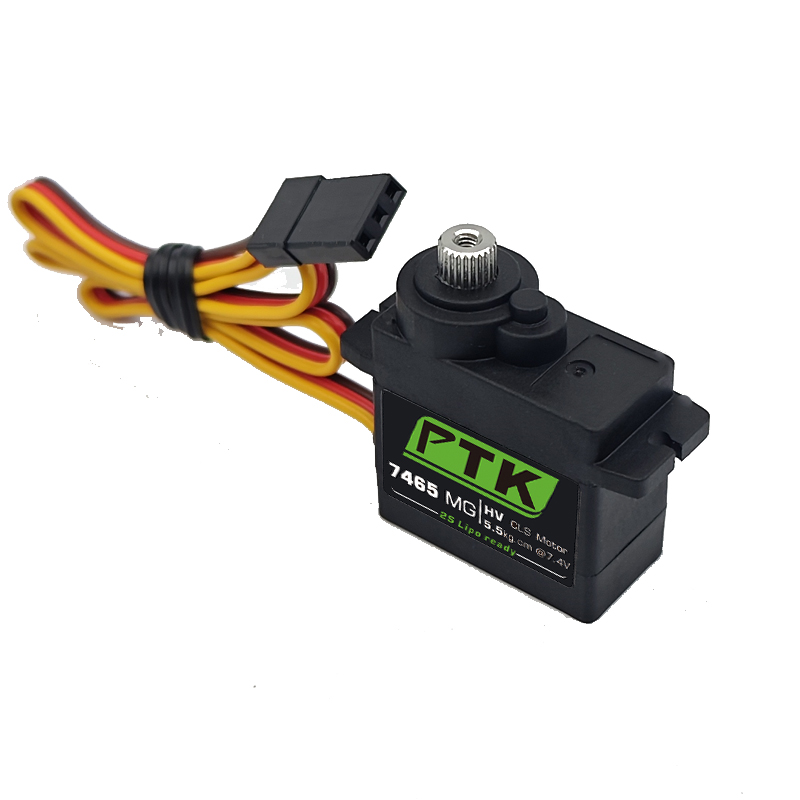

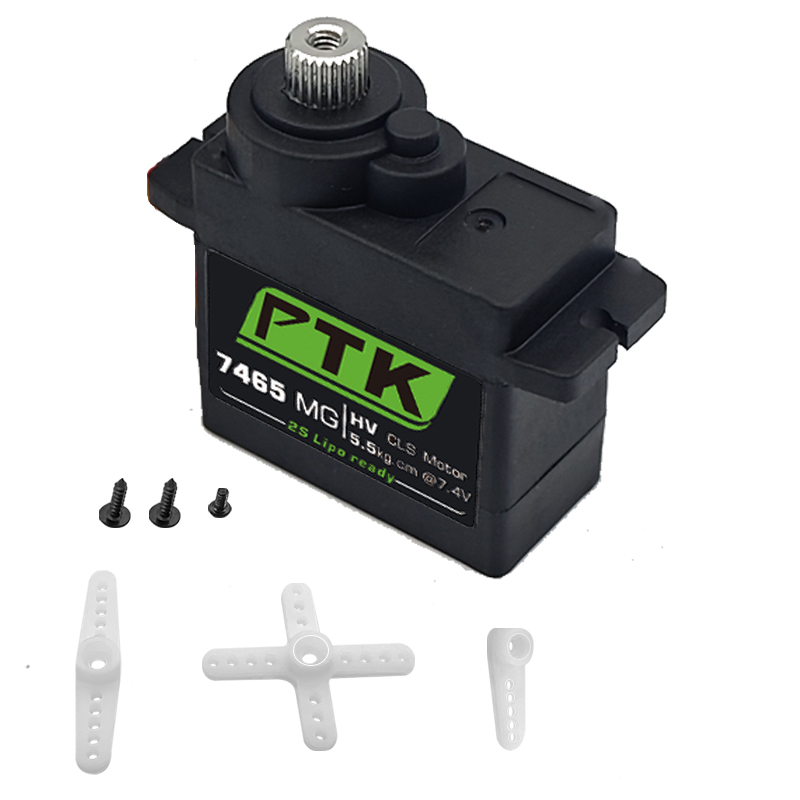

PTK 7465 MG-D

Price
45.00
产品详情
型号 PTK 7465 MG-D 类型 Micro Servo

Gears : Metal Alu

Ball Bearing :     1

Gears Play : very low

Weight : 13g

Dead band   :   25T 5mm

Type of motor:Coreless Motor

Dimensions : 23.9* 12*26.6 mm

Speed/Torque@ 5.0V : 0, 111 sec/60 °

Speed/Torque@ 6,0V : 0,092 sec/60 °

Speed/Torque@ 7,4V : 0,075 sec/60 °

Speed/Torque@ 8,4V : 0,070 sec/60 °

Input Voltage : 5.0V - 8,4V

Harness length : 250mm JR

Electric precision : 2 μs


Digital metal gear precision Servo
About PTK-VOTIK Huizhou Yinyi Technology Co., Ltd. was established in 2021, is a high-tech enterprise engaged in intelligent transmission company mainly R & D, production and sales of various types of servo, the main categories are: model aircraft servo, model vehicle servo, fixed wing servo, RC servo, robot arm servo, metal servo, etc. Widely used in models, toys, iot home control, micro mechanical control drive, robot field.
